Complex milling cutters

Article no. CH-50052360

back to list

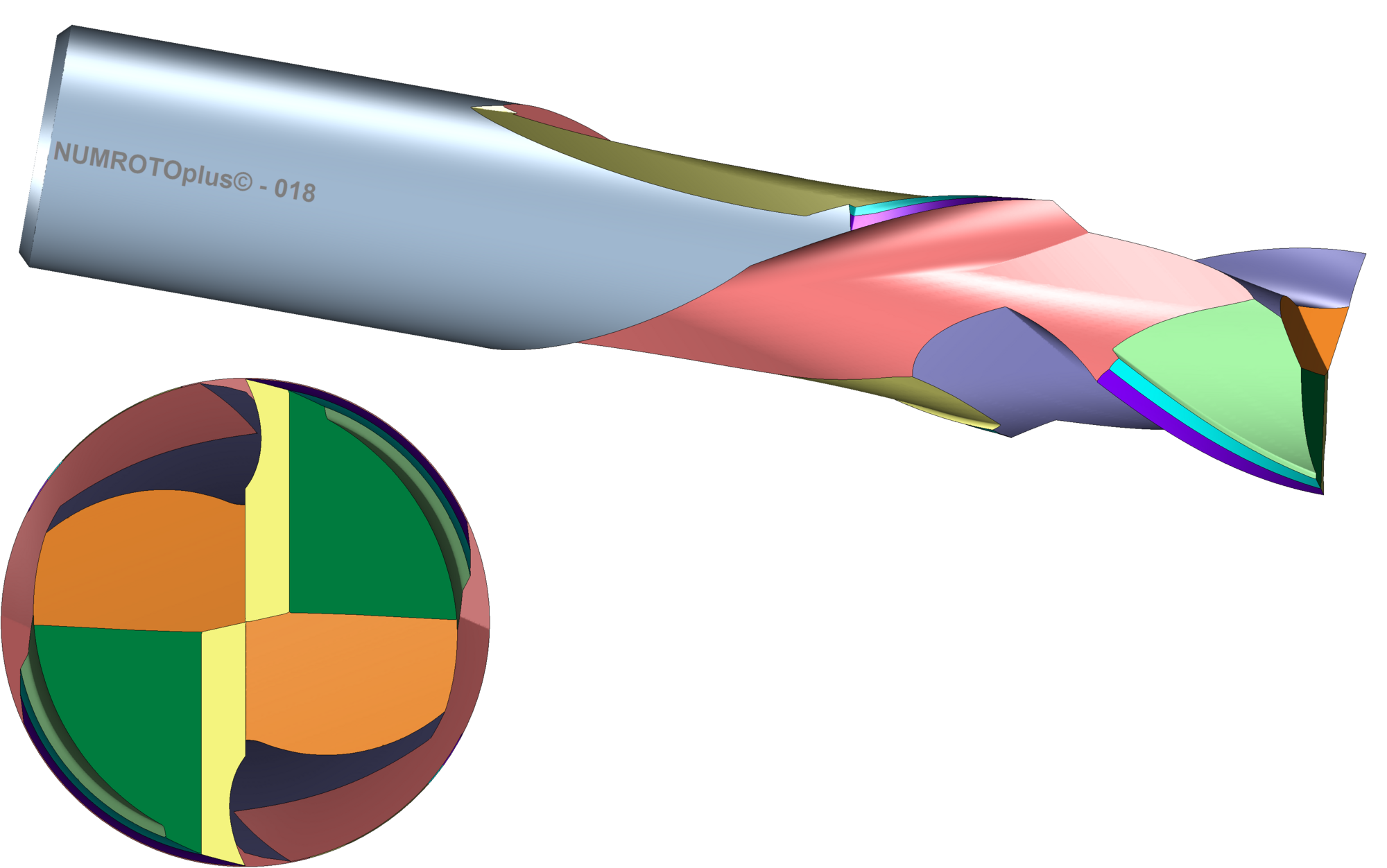

  • Up/Down milling cutter

    • The up/down milling cutters have 4 cutting edges with helix on the right in the tip and 2 cross mesh cutting edges in the cylinder area.
    • This option demands item no. CH-50052360 (Complex milling cutters).

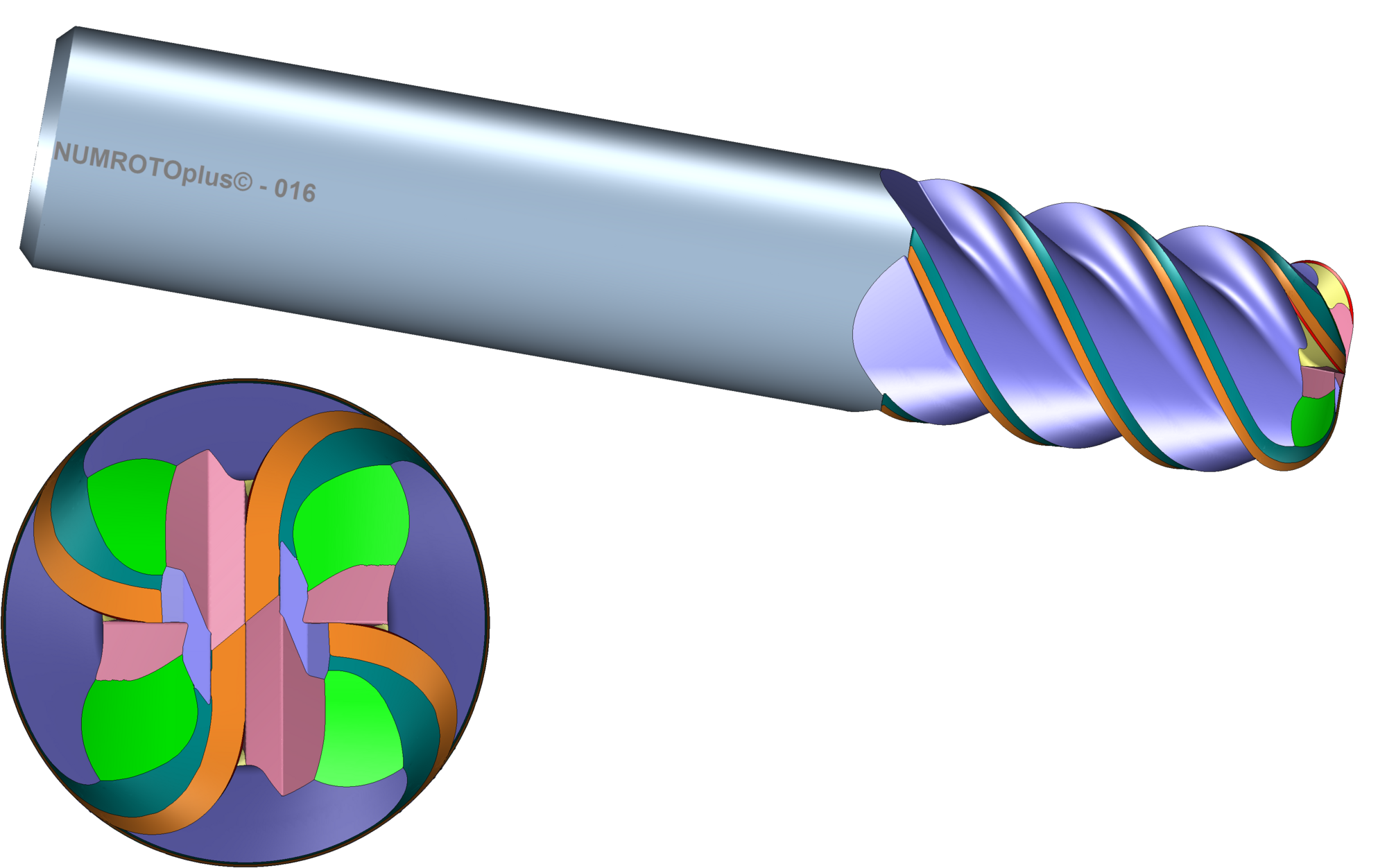

  • Helical corner radius milling cutter cutters with 4 edges and K-land

    • Highly helical corner radius milling cutter with negative protective chamfer.
    • Right-hand helix 60°, right-hand cutting
    • Diameter = 12mm
    • This option demands item no. CH-50052360 (Complex milling cutters).

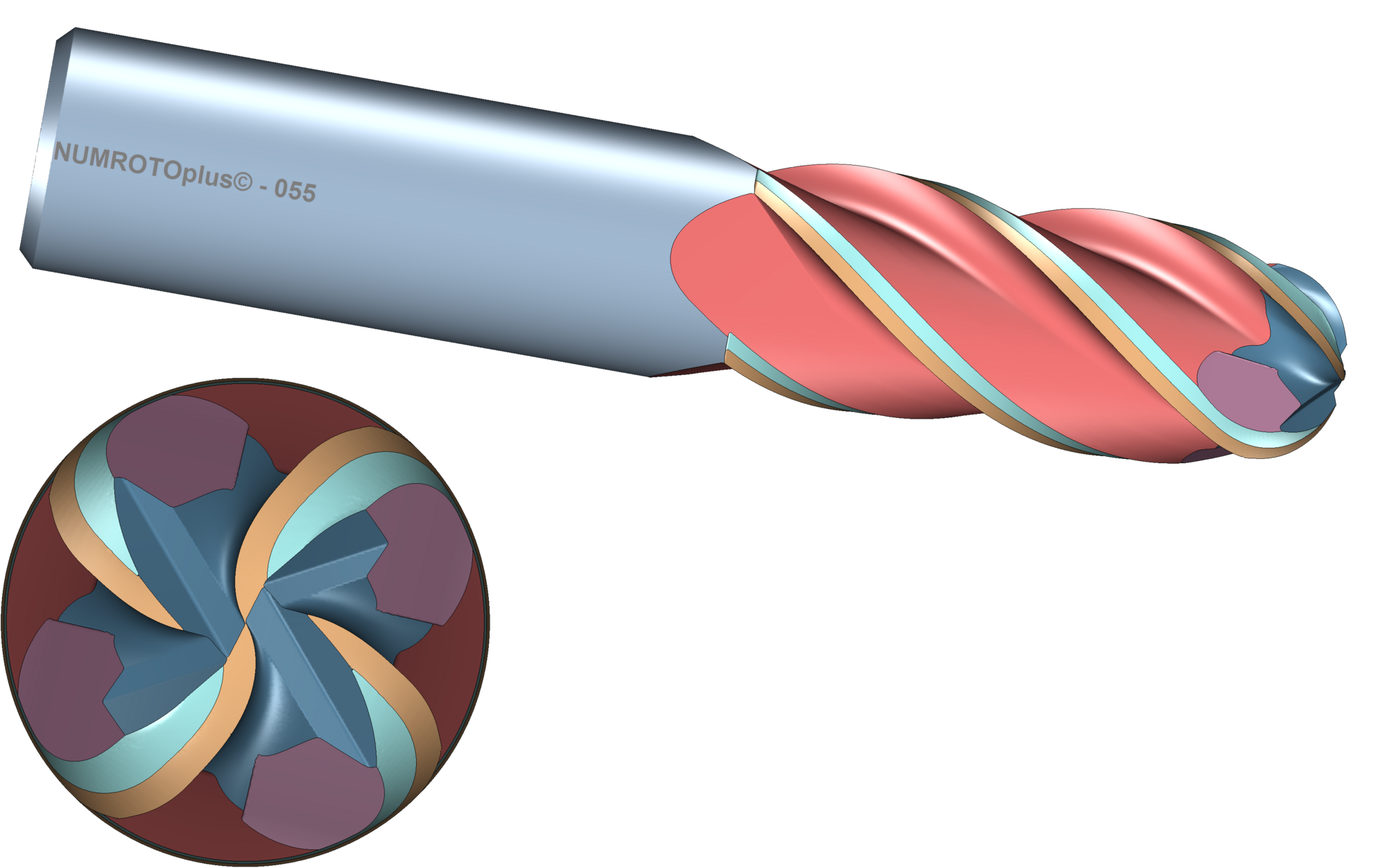

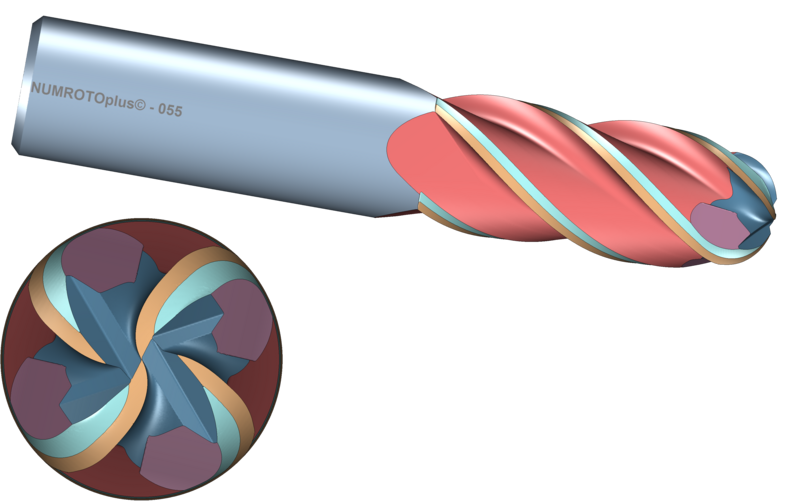

  • Milling cutter with ball nose and S-gash out

    • Right-hand helix 30°, right-hand cutting
    • Diameter = 12mm
    • This option demands item no. CH-50052360 (Complex milling cutters).
